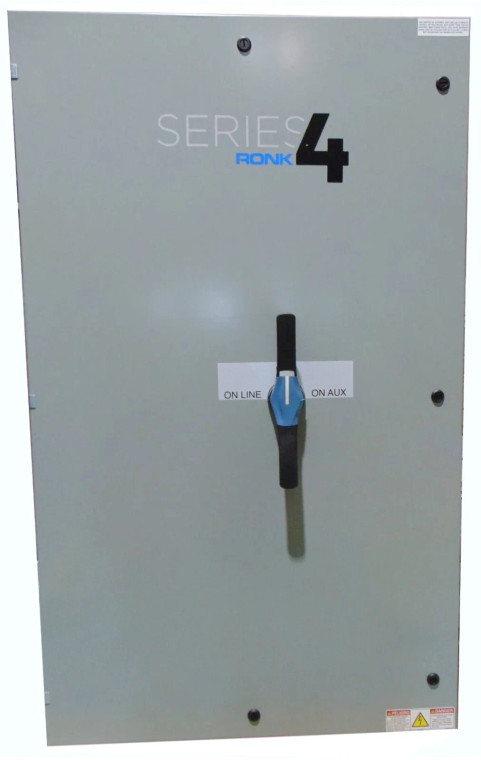

Ronk Series 4 4803SE 800AMP Front Panel

Ronk Series 4 800 Amp 3phase 600V Manual Double Throw Transfer Switch 4803SE

Ronk
$9,893.17
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Ronk 4803SE Series 4 Heavy-Duty Double-Throw Manual Transfer Switch offers economical, reliable, and safe transfer of 800A loads between the main power and an auxiliary source.

FEATURES

  • Three Phase, Up to 600VAC, Three Pole, Solid Neutral.
  • Rotary operator handle is conveniently mounted on the door and lockable in three positions: On-Line, Off, On-Auxiliary.
  • Heavy-duty switch designed for long life.
  • Lugs are factory-installed for switch poles.
  • Factory installed neutral and ground bar.
  • Factory-installed auxiliary contacts for remote ON/OFF signaling or electrical interlocking.
  • NEMA 4 Outdoor rated enclosure, Powder coated steel.
  • Rated 100% capacity, continuous duty.
  • Non-fused.
  • Full Dimensions 64" x 36" x 24"
  • Not Service Entrance Rated
  • UL 98 Listed.

Link to spec sheets
https://ronkelectrical.com/products/series-4-double-throw-switch-4803se
